Marine Diesel SO2 Scrubber Case Study

Posted by Andy Bartocci on Tue, Jan 08, 2013 @ 03:40 PM

Marine DeSOx ScrubberEmissions from marine vessels contribute to global smog forming pollutants.  In response, the International Maritime Organization (IMO) has adopted new regulations in MARPOL  Annex VI for progressive reduction of NOx, SOx, and Particulate.  The new regulations require ships to achieve a SOx reduction equivalent to 0.1% sulfur fuel by 2015. This requirement can be met by using more expensive, low sulfur fuel, or by   using a marine diesel scrubber. The scrubbers must achieve greater than 97% SOx removal with 3.5% sulfur fuel.  A cost effective scrubber is needed to help ship operators comply with these rules and avoid high cost ultra-low sulfur fuel.

The Envitech HYSEA DeSOx scrubber combines 30 years of experience achieving low emissions on stationary sources with patent pending technology.  Scrubber  features include:

  • Innovative inlet design allowing a vertical bottom direct connect to minimize space.Marine diesel scrubber
  • Proprietary quencher to cool the gas to saturation and remove particulate.
  • Flow works modeling to ensure uniform gas distribution for maximum performance.
  • Flexibility for open loop operation to minimize operating cost and closed loop operation for navigation in inland water ways and SECA zones.
  • High performance, foul-resistant mass transfer media to minimize pressure drop and parasitic load.
  • Skid mounted pump skid with integrated control panel.

Please click on the icon below to download a case study on the Envitech HYSEA DeSOx scrubber.

Download  Case Study

Topics: Scrubbers, Marine Scrubber, Cruise Ship Scrubber, Diesel Scrubber

Marine Diesel Exhaust Gas SO2 Scrubber

Posted by Garrett Tobin on Fri, Oct 05, 2012 @ 11:46 AM

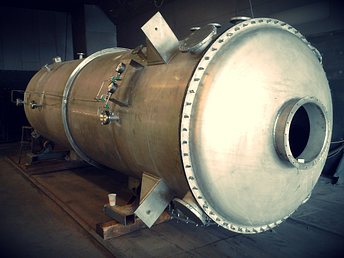

Marine Diesel Exhaust Gas SO2 ScrubberIn previous blog posts we have discussed our continuing progress in the development and implementation of SO2 Scrubber technology to control marine diesel engine emissions. We have recently finished manufacturing an exhaust gas cleaning system for SO2 removal which is to be installed at a state of the art maritime engine test facility equipped with a 3MW diesel engine. Soon we will begin testing our system under a wide variety of conditions to fine-tune and validate our marine diesel engine emissions scrubbing technology. Once the testing is complete, we will apply for a maritime registration for our control technology.

Regulations on exhaust gas emitted from marine diesel engines are becoming increasingly stricter. The recently implemented MARPOL Annex VI specifies that the fuel used to power large sea bearing vessels must contain no more that 3.5% sulfur oxides by weight in non-Emission Control Areas and no more that 1.0% by weight in designated Emission Control Areas. This allowable weight percentage of SOx will drastically decrease to 0.5% in 2020 for non-Emission Control Areas and 0.1% in designated Emission Control areas. One can easily predictmarine scrubber that fuel expenses for ship-owners will increase along with the requirement for the use of lower sulfur content fuel. An economical alternative to using this more expensive fuel is to install a secondary exhaust gas cleaning system such as an SO2 scrubber to clean diesel engine emissions before they are released to the atmosphere.

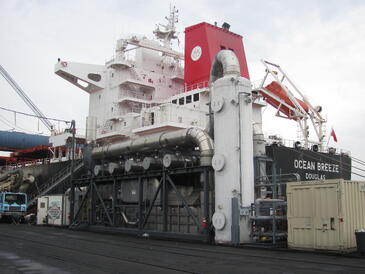

In addition to Envitech’s new ship-based marine diesel engine SO2 scrubber demonstration system, we have seen continued success with meeting SO2 emission limits with our land-based SO2 marine scrubber which was installed this past March at the Port of Long Beach in Southern California. Our land based scrubber is used to clean the stack gases of ships that need to continue to run their engines to generate power while docked.

To read more about our products for marine diesel engines, download the case study below.

Download  Case Study

Topics: Scrubbers, SO2 Scrubber, Marine Scrubber, Diesel Scrubber
